Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: SZ
  • Model Number: SZ- rod
  • Application: electrical,power station,chemical, construction
  • Surface Treatment: natural
  • Technique: Pultrusion
  • Dimensions: Customizable
  • Material: fiberglass and resin
  • Dimension: customized
  • Color: customized
  • Certification: ISO9001:2008
  • Other Type: retangular tube square tube,T bar ,flat bar,line bar,round bar,pipe .
  • UV reistance: YES
  • Maintance: NO
  • Service life: more than 10 years
  • Anti-corrosion: YES
  • Transportation: close sea

Packaging & Delivery

Packaging Details standard packing for shipping , and we can design as clients' requirements .
Delivery Time within 7 days after getting payment

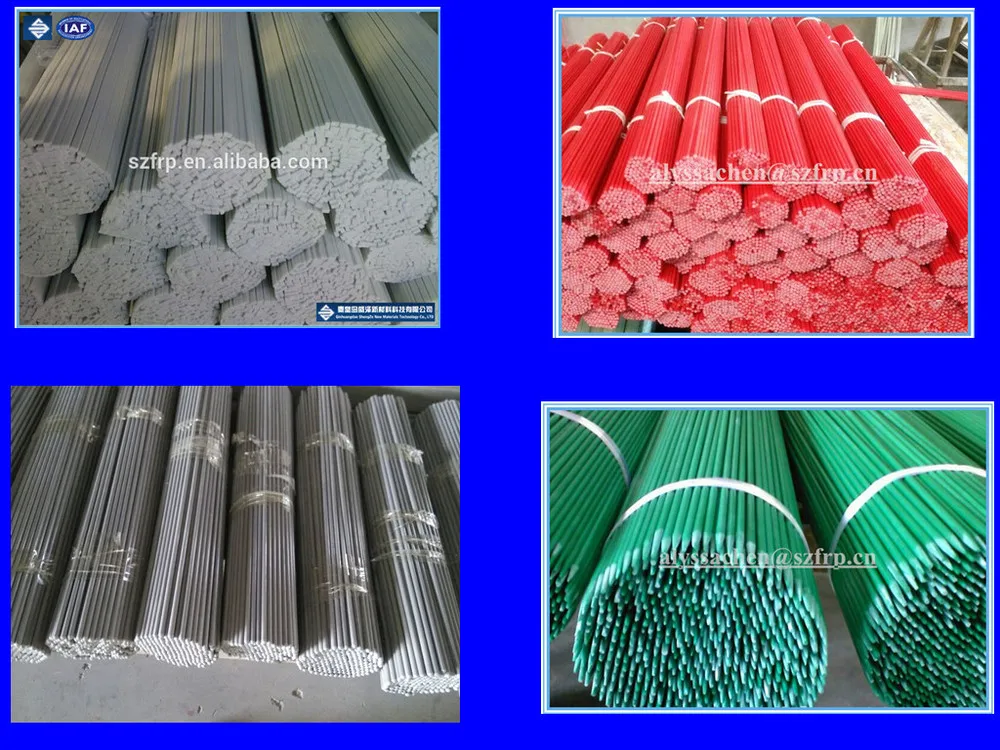

 5mm 6mm 10mm 12mm composite solid fiberglass rods / frp rods



Shengze is a leading and professional manufacturer of fiberglass products for over 20 years .Welcome to visit us !



Product Description





Advantage of FRP rod


High strength
Light weight
Anti-corrosion
Electrical and thermal insulation
Flame retardant
Electro-magnetic transparency
Low coefficient of thermal expansion
Low temperature capabilities
Anti-age
Free to design
Good appearance
Property of FRP rod

physical properties

Density

g/cm3

1.9~2.0



Fiberglass content

%

58~65



Water Absorption

%

0.2



mechanical property

Barcol hardness



55

Tensile Strengh(lengthways)

Mpa

550

Tensile Strengh(crosswise)

Mpa

65



Flexural Strengh(lengthways)



          Mpa

600




Flexural Strengh(crosswise)

Mpa

70




Hole crushing strength(lengthways)

Mpa

90




Hole crushing strength(crosswise)

Mpa

50




shear strength

Mpa

15



electrical property

breakdown voltage

kv/mm

10

Arc Resistance

S

180

Comparative       tracking index

V

600

Application of FRP round bar







FRP bar regular Diameter



Picture Diameter (mm)Weight (g)
314
425
538
658
896
10150
11180
12210
12.5240
14300
15345
16388
18496
20595
25970
301342
503827



We support customized diameter , any dimension is okey for us !

FRP rod further processing

Normal Cutting

Polished ends

Both ends are round ,this can be used as flag pole .

Sharpen ends

Piercing hole



Company Information

 Company Introduction





 Testing Machine





Certification

Except ISO , we have Bureau Veritas certification.Bureau Veritas was established in 1828. Headquartered in Paris, France, Bureau Veritas is one of the world's most widely recognized authorities in the certification industry.



TS16949 is another certification , this certification is a authority in  automobile area





Packaging & Shipping



Our Services



1. High quality

We are the manufacture with settled factory .  Our company ensures our product light weight ,high strength,

anticorrosion , resist heat ,UV and so on . It is amazing, and with cheap price and guaranteed quality.



2. competitive price

We can adjustment the price according to your market demand’s changes,and also can launch a series of

promotional activities in a bad economic environment



3. Professional

Shengze is a leading and professional manufacturer of fiberglass product for 20 years ,We are special in

producing and sells, as development, methods, and handling.


4. Best service

Answering emails or solving questions timely. Delivery and update information on time. Trust, good quality

and service are the basic of long term business.



Other pultrusion profiles







                                          Round rob  Rectangles  Squares  Sections  Angles  Channel



Dog bone profiles  Dove tail sticks and spacers



Corner profiles  Hallow sections  Frp Gratting,



Frp Cable Tray  Door Frame



Frp Ladder & other Pultruded Profile





FAQ



1. About sample

we can offer samples as client's requirements , samples are free .



2.About customized products

we can make products as client's requirements , we can satisfy client's special requirements .



3.About shipping Date

Shipping date according to quantity ,client'd demand and our production.



4.About min order

We support min order and try our best to nake client satisfied
